MFW series Manual Filter Wheel
MFW series Manual Filter Wheel
MFW series filter wheel using for mount many filters and fast switch manually
Features:
High-quality materials: The main body is made of high-quality aluminium alloy, and the surface treated by black anodic oxidation.
Universal mounting: M6 mounting thread and Ø11mm long slot for easy mounting.
Show Filters:
Features:
• High-quality materials: The main body is made of high-quality aluminium alloy, and the surface treated by black anodic oxidation.
• Advanced structure：
① Mount many filters and fast switch in manually
② Each position has limiting mechanism ,switch high repeatability
③ Dual wheel structure suitable for many ND filters combine with many bandpass filters
④ Dual locking method fixing the filters
• Universal mounting : M6 mounting thread and φ11mm long slot for easy mounting
|
Model |
MFW6-25 |
MFW12-25 |
|
Optic Size (mm) |
φ25/φ25.4 |
|
|
Optics Thickness (mm) |
1~6 |
|
|
Clear Aperture (mm) |
φ22 |
|
|
Fliter Slot Number |
6 |
12 |
|
Optic Center Height (mm) |
50 |
|
|
Overall Width (mm) |
82 |
|
|
Overall Thickness (mm) |
44.5 |
49 |
|
Main Body Material and Treatment |
aluminium alloy, surface treated by black anodic oxidation. |
|
|
Mounting Hole |
2*M4 M6,2*M4 |
|
|
Net Weight (g) |
190 |
270 |

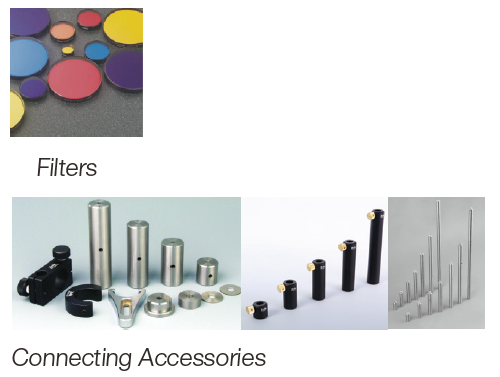

Related Products:
Selection table:
|
Model |
MFW6-25 |
MFW12-25 |
|
Optic Size (mm) |
φ25/φ25.4 |
|
|
Optics Thickness (mm) |
1~6 |
|
|
Clear Aperture (mm) |
φ22 |
|
|
Fliter Slot Number |
6 |
12 |
|
Optic Center Height (mm) |
50 |
|
|
Overall Width (mm) |
82 |
|
|
Overall Thickness (mm) |
44.5 |
49 |
|
Main Body Material and Treatment |
aluminium alloy, surface treated by black anodic oxidation. |
|
|
Mounting Hole |
2*M4 M6,2*M4 |
|
|
Net Weight (g) |
190 |
270 |
Filter：
