AKG Series High Precision Manual Goniometer
.jpg)
.jpg)
.jpg)
.jpg)

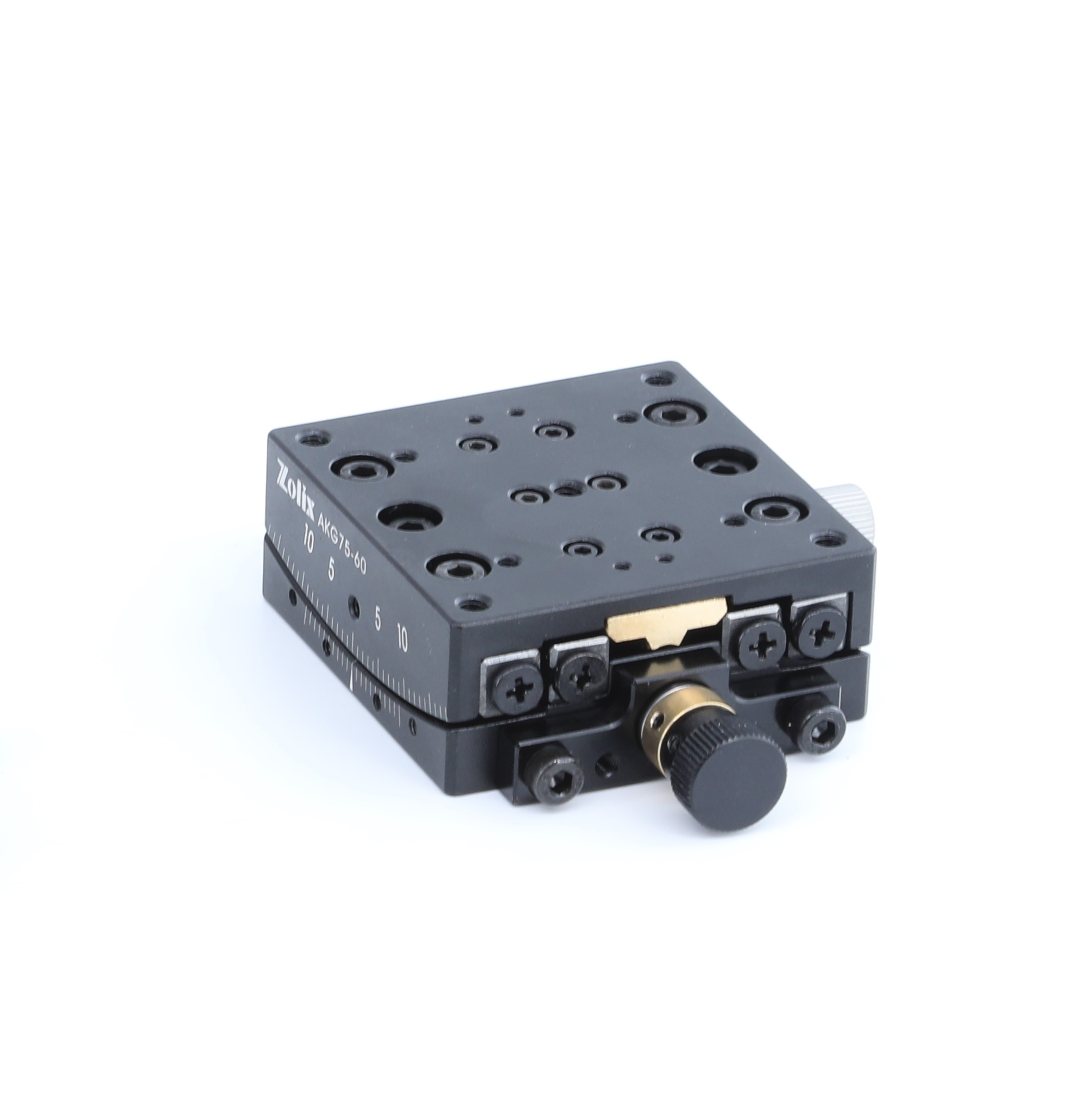

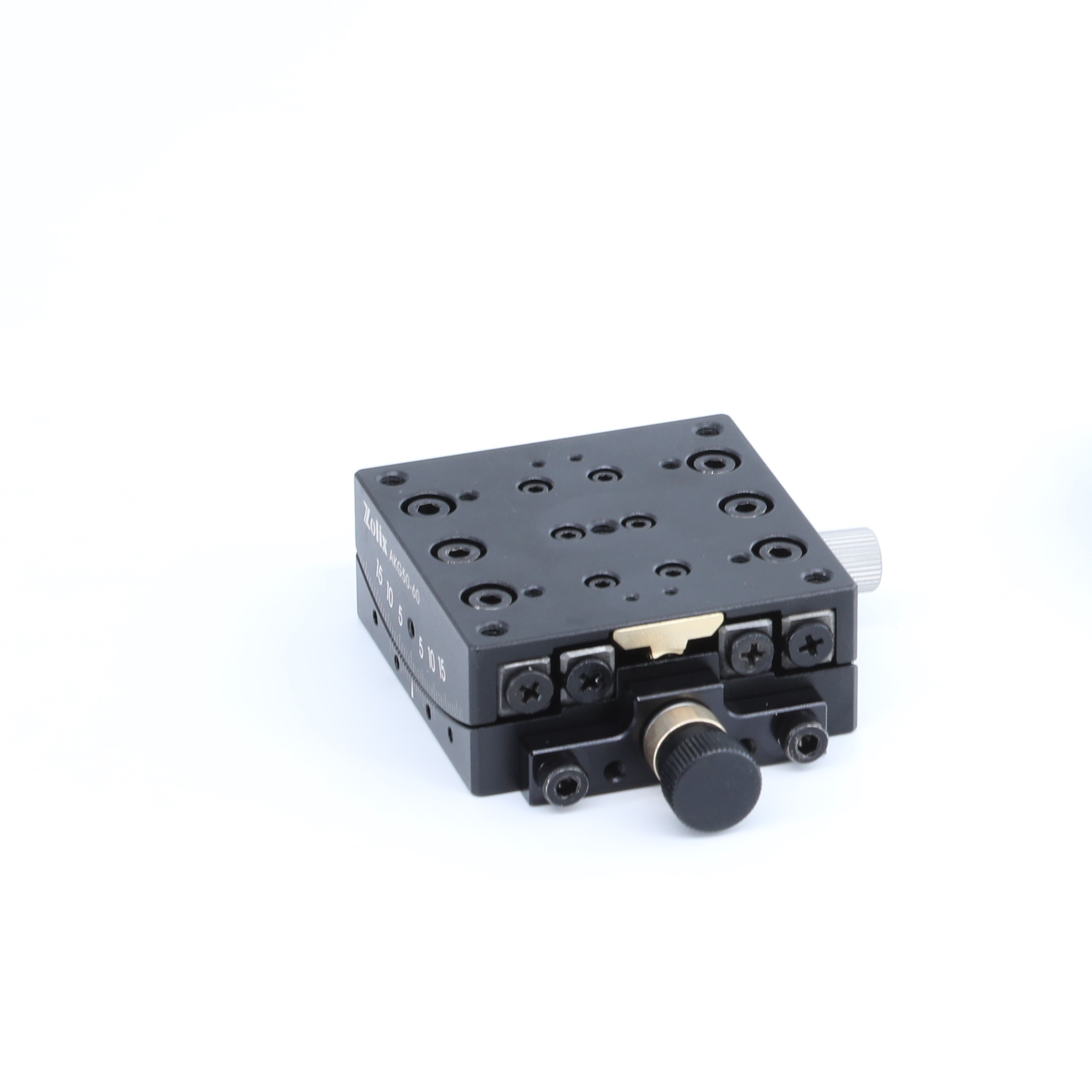

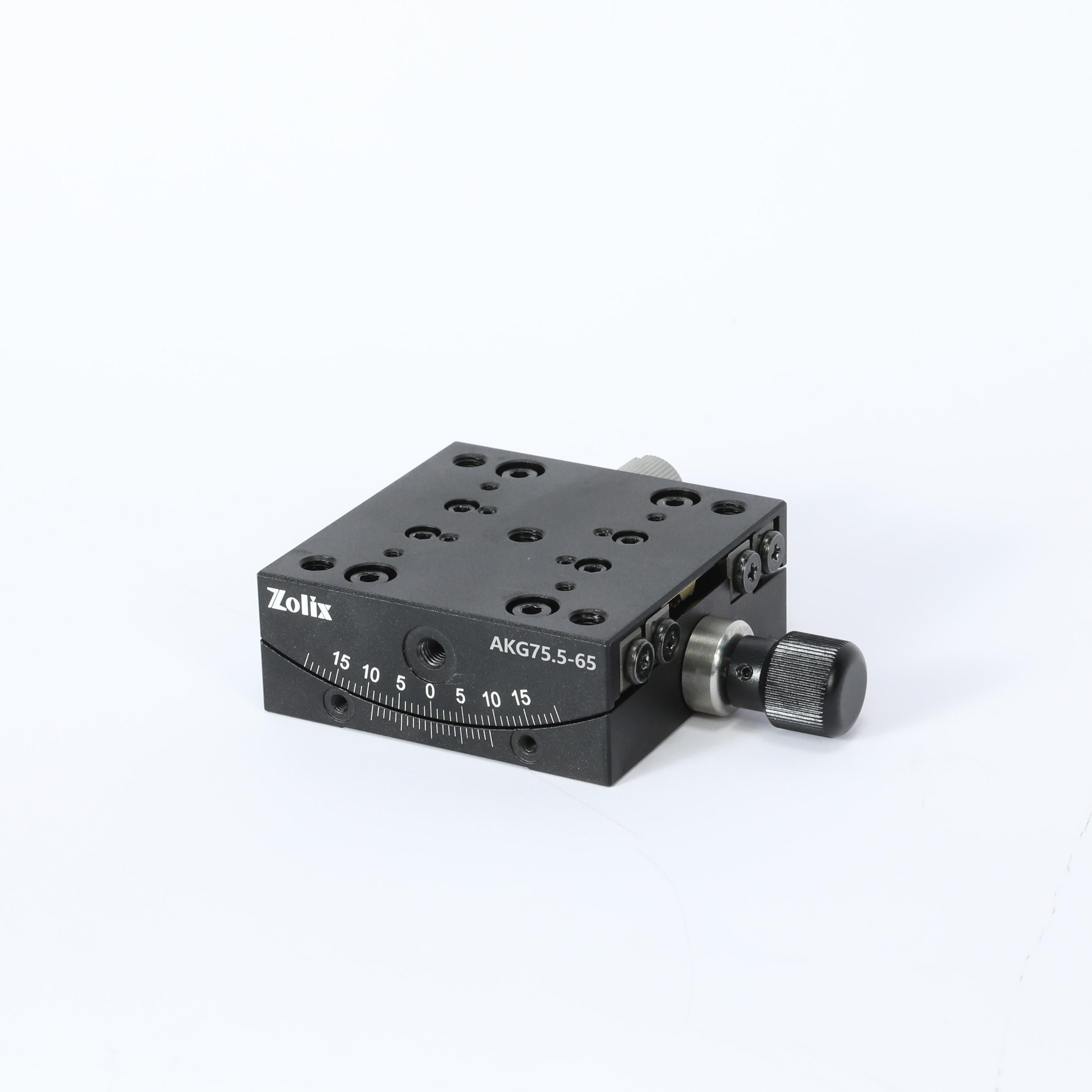

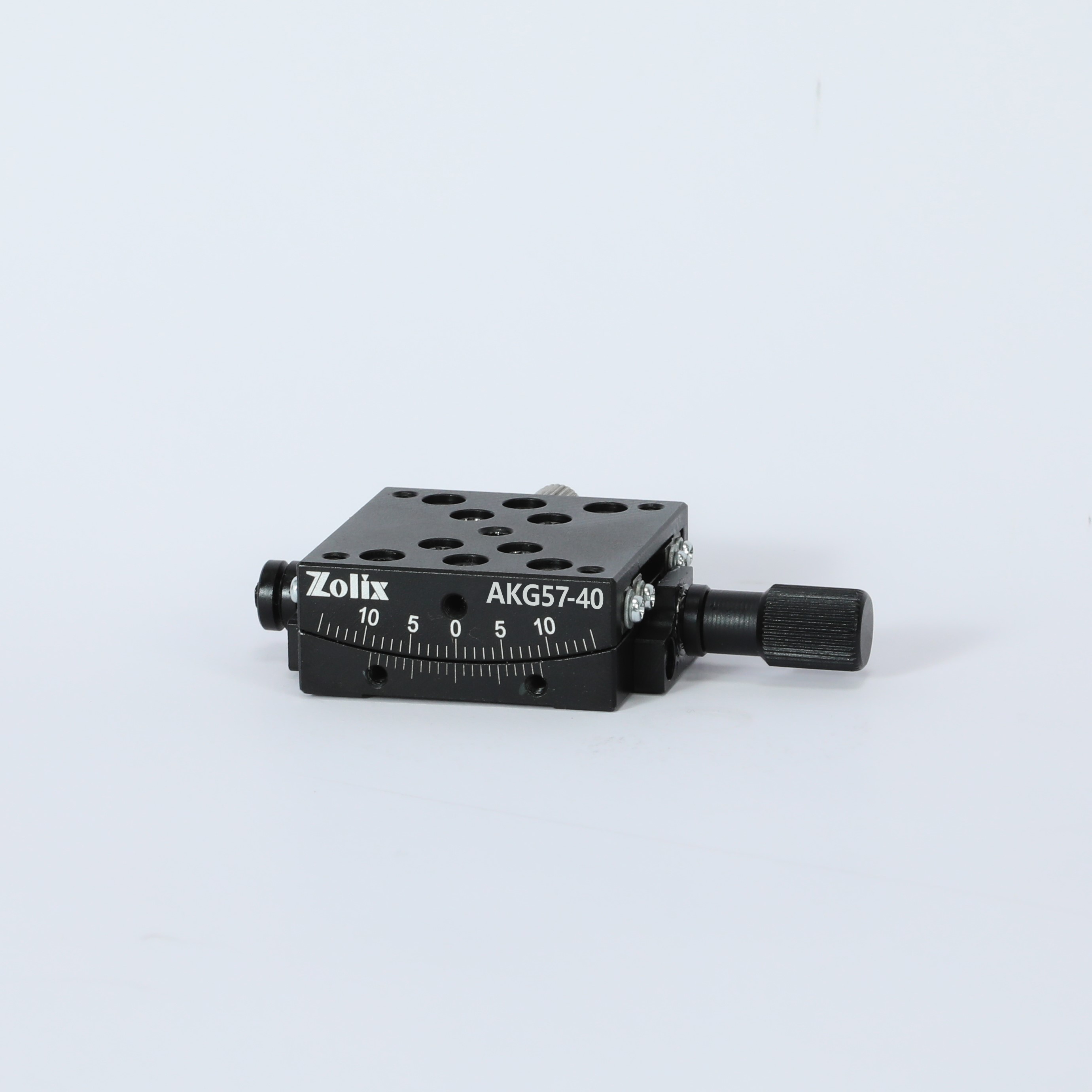

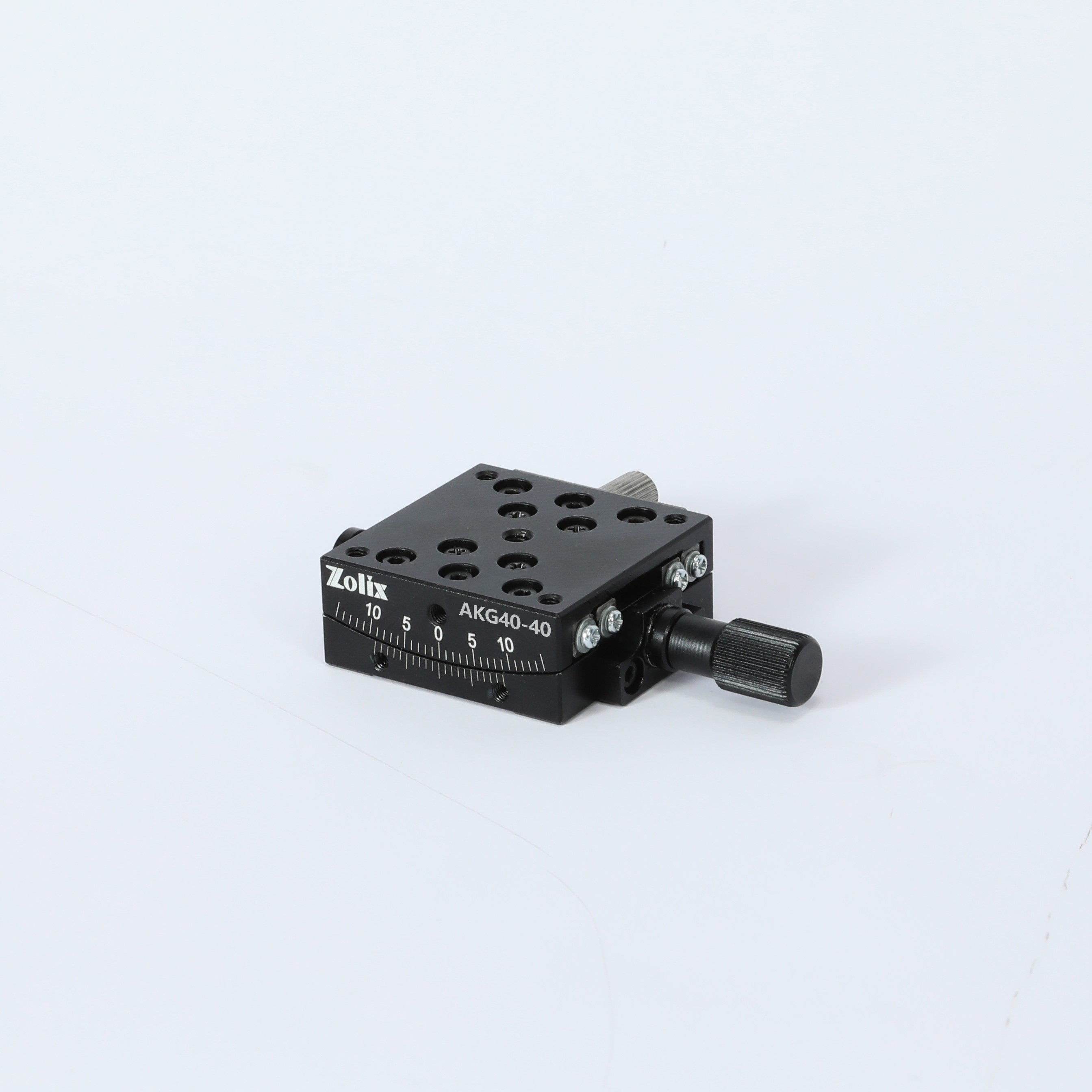

AKG Series High Precision Manual Goniometer
AKG manual goniometer is made of high-quality aluminum alloy, with curved crossed-ball guide, and driven by worm gear and worm.
This goniometer runs stably and reliably with high sensitivity, which is suitable for the field with high requirements for manual angle adjustment.
Features:
See All FeaturesShow Filters:
•Worm gear and worm drive type, high sensitivity.
•Curved crossed-ball guide
| Selection chart: | ||||||
| Model | AKG57-40 | AKG40-40 | AKG75.5-65 | AKG50-65 | AKG50-60 | AKG75-60 |
| Travel range(°) | ±10.0 | ±15.0 | ±10.0 | ±15.0 | ±10.0 | ±8.0 |
| Design center height(mm) |
57 | 40 | 75.5 | 50 | 50 | 75 |
| Stage surface size(mm) | 40×40 | 40×40 | 65×65 | 65×65 | 60×60 | 60×60 |
| Thickness(mm) | 17 | 17 | 25.5 | 25.5 | 25 | 25 |
| Guide mechanism | Curved crossed-ball guide | Curved crossed-ball guide | Curved crossed-ball guide | Curved crossed-ball guide | Curved crossed-ball guide | Curved crossed-ball guide |
| Drive type | worm gear and worm | worm gear and worm | worm gear and worm | worm gear and worm | worm gear and worm | worm gear and worm |
| Transmission Ratio | 252:1 | 235：1 | 352：1 | 252：1 | 252：1 | 352：1 |
| Main body material and surface treatment |
Black anodized aluminum alloy | Black anodized aluminum alloy | Black anodized aluminum alloy | Black anodized aluminum alloy | Black anodized aluminum alloy | Black anodized aluminum alloy |
| Weight(Kg) | 0.15 | 0.15 | 0.42 | 0.42 | 0.36 | 0.36 |
| Run-out of center of rotation(µm)(um) |
≤60 | ≤60 | ≤40 | ≤40 | ≤15 | ≤15 |
| Vernier minimum read- ing(°） |
0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Angle changes by tuning a round of micrometer (°) |
≈1.13 | ≈1.53 | ≈1.02 | ≈1.43 | ≈1.43 | ≈1.02 |
| Load capacity(kg) | 3 | 3 | 5 | 5 | 5 | 5 |
